| Model Number : | HH-HROPE |
| Certification : | ISO9001-2015 |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram |
| Supply Ability : | 50000 square meters per 28 days |
| Delivery Time : | 7 work days |

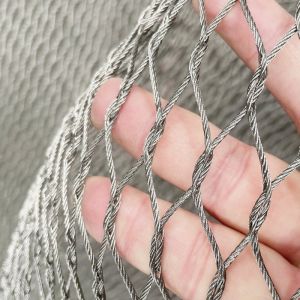

Hand woven mesh is made of stainless steel wire ropes that are twisted and crossed together. Compared with wire rope ferrule mesh, it has better overall integrity and higher transparency and is suitable for places with higher visual effect and safety protection requirements. Its integrated structure allows it to be better stretched, twisted and create more innovative decorative effects, without compromising strength or safety.
We can provide rope mesh materials with different mesh aperture sizes and wire rope diameters, and design custom solutions based on your specific applications.
Each of our products undergoes stringent inspections before leaving the factory to ensure their compliance with AISI 304, 316, 316L, and ISO/TS 15510:2003 standards.
| Type | C (%) | Si (%) | Mn (%) | Cr (%) | Ni (%) | S (%) | P (%) |
|---|---|---|---|---|---|---|---|
| 304 | ≤ 0.07 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-11.0 | ≤ 0.03 | ≤ 0.035 |
| 304L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-12.0 | ≤ 0.03 | ≤ 0.035 |
| 316 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | 16.0-18.5 | 10.0-14.0 | ≤ 0.03 | ≤ 0.035 |
| 316L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 16.0-18.0 | 12.0-15.0 | ≤ 0.03 | ≤ 0.045 |
When the application requires high resistance to chloride ion corrosion and heat, 316 stainless steel is preferred. That's because 316 stainless steel contains the element molybdenum (Mo), which forms a denser and more stable passive film on the metal surface, thus effectively enhancing the stainless steel's resistance to chloride ion corrosion.
| Cable Diameter | Mesh Opening Size | ||
| inch | mm | inch | mm |
| 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 |
| 1/8 | 3.2 | 4 x 4 | 102 x 102 |
| 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 |
| 1/8 | 3.2 | 3 x 3 | 76 x 76 |
| 1/8 | 3.2 | 2 x 2 | 51 x 51 |
| 3/32 | 2.4 | 4 x 4 | 102 x 102 |
| 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 |
| 3/32 | 2.4 | 3 x 3 | 76 x 76 |
| 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 |
| 3/32 | 2.4 | 2 x 2 | 51 x 51 |
| 5/64 | 2.0 | 3 x 3 | 76 x 76 |
| 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 |
| 5/64 | 2.0 | 2 x 2 | 51 x 51 |
| 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 |
| 1/16 | 1.6 | 3 x 3 | 76 x 76 |
| 1/16 | 1.6 | 2 x 2 | 51 x 51 |
| 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 |
| 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 |
| 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 |
| 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 |
| 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 |
| 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 |
| 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 |

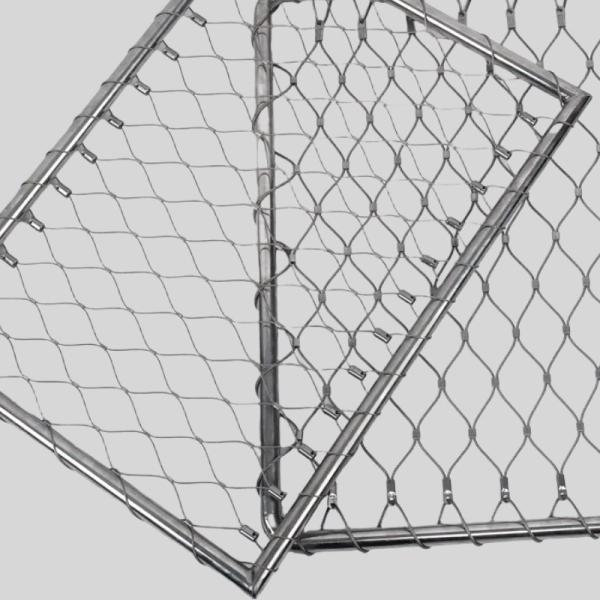

Edge design is the most important to rope mesh. In real life, the mesh is required to fit in frames of rectangular, trapezoid, triangular and other irregular shapes. When the mesh has a suitable border finish, you can install it on the frame directly, quickly and easily. Border pattern includes basic, loops and eyelets. It depends on the final panel dimension, mesh diamond direction, panel shape, etc. Different edge solution has different costs.
|
|
