| Model Number : | HH-SSPROTECTION |
| Certification : | ISO9001-2015 |
| Payment Terms : | T/T,Western Union,MoneyGram |
| Supply Ability : | 5000 rolls per 25 days |
| Delivery Time : | within 7 work days |

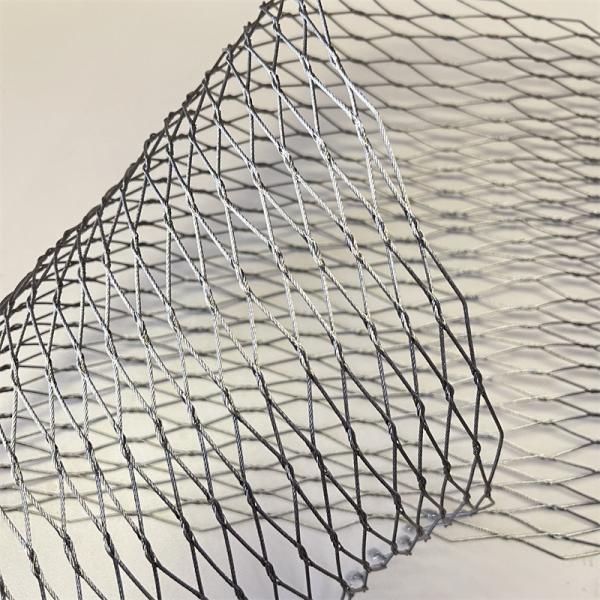

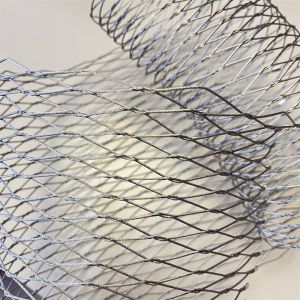

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7 x 7 and 7x 19,stainless steel cable to create diamond openings from 1” through 4”(1"*1", 2‘’*2‘’,3‘‘*3‘’,4‘’*4”)
Material: stainless steel 304, 304L, 316, 316L.
Surface treatment: silver or black oxide finish.
Construction of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.2–3.2 mm.
Mesh opening sizes: 20–100 mm.
Stainless steel rope mesh generally consists of two categories. The stainless steel knotted rope mesh is very similar with the ferrule rope mesh. The difference is that stainless steel wires are winded and interwoven to form a knotted structure instead of using Ferrule. The knotted structure is solid and unmovable, which ensures the uniformity of the mesh openings. The mesh wires are stretched to create an angle of 90°. The mesh is often used for aviary mesh or zoo mesh
| Rope Structure | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | |
| 7 × 19 | 1/8 | 3.2 | 3.6″ × 3.6″ | 90 × 90 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3″ × 3″ | 76 × 76 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 2″ × 2″ | 51 × 51 | 7.38 |
| 7 × 7 | 3/32 | 2.4 | 4″ × 4″ | 102 × 102 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3.6″ × 3.6″ | 90 × 90 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3″ × 3″ | 76 × 76 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2.4″ × 2.4″ | 60 × 60 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2″ × 2″ | 51 × 51 | 4.18 |
| 7 × 7 | 5/64 | 2 | 3″ × 3″ | 76 × 76 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2.4″ × 2.4″ | 60 × 60 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2″ × 2″ | 51 × 51 | 3.17 |
| 7 × 7 | 5/64 | 2 | 1.5″ × 1.5″ | 38 × 38 | 3.17 |
| 7 × 7 | 1/16 | 1.6 | 3″ × 3″ | 76 × 76 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 2″ × 2″ | 51 × 51 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.5″ × 1.5″ | 38 × 38 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.2″ × 1.2″ | 30 × 30 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1″ × 1″ | 25 × 25 | 2.17 |
| 7 × 7 | 3/64 | 1.2 | 2″ × 2″ | 51 × 51 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.5″ × 1.5″ | 38 × 38 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.2″ × 1.2″ | 30 × 30 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1″ × 1″ | 25 × 25 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 0.8″ × 0.8″ | 20 × 20 | 1.22 |
1)Stainless steel rope provides the highest corrosion resistance.
2)Elegant and robust of rope mesh
3)Light, robust yet transparent.
4)UV and weather resistant finished treatment for rope mesh
5)rope mesh is Flexible and pliable.
6)Climb resistant and prevents a secure foothold.
7)The minimum visual impact on views.
8)Good price-benefit-ratio from huihao company
9)Easy installation and low maintenance.
10)Weave opening, meet any exact specification.
|
|
