| Model Number : | HH-SSPRINT |
| Certification : | ISO9001-2015 |
| Payment Terms : | L/C,T/T,Western Union |
| Supply Ability : | 8000 SQUARE METERS PER 20 DAYS |
| Delivery Time : | WITHIN 7 WORK DAYS |

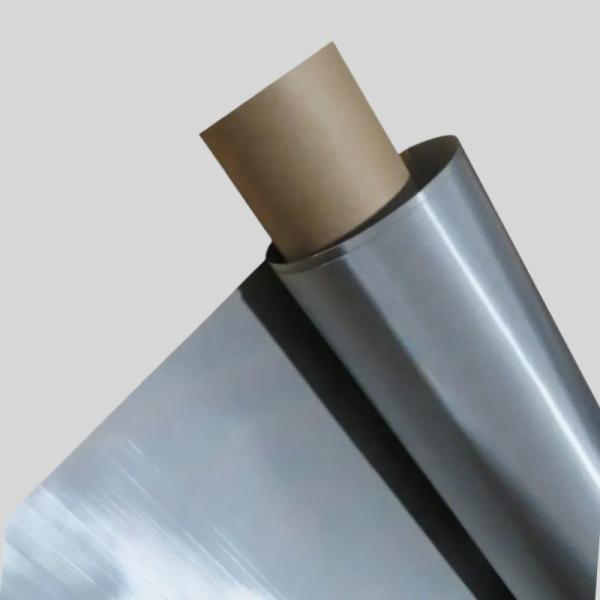

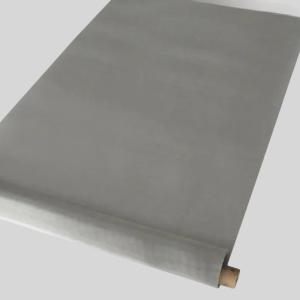

Metal printing screen (metal material), also known as "stainless steel printing screen" and "screen printing metal screen". The metal printing screen produced by our company has the characteristics of high tension, high stability, ultra-low elongation, uniform mesh, high wear resistance, solvent resistance, high yield point, high precision, dustproof and antistatic, and good screen printing performance. It is widely used in printed chip components, electronic circuit boards, printed solar panels, printed liquid crystal displays, printed glass, ceramics and other industries.
| Item | Mesh count | Thread Diameter | Open Area | Aperture | Theoretical ink |
|---|---|---|---|---|---|
| mesh/inch | μm | % | μm | cm3/m2 | |
| SPMS-200-50 | 200 | 50 | 37.0 | 77 | 42.0 |
| SPMS-230-35 | 230 | 35 | 46.7 | 75 | 37.0 |
| SPMS-250-40 | 250 | 40 | 36.8 | 62 | 34.0 |
| SPMS-250-30 | 250 | 30 | 49.7 | 72 | 30.0 |
| SPMS-250-35 | 250 | 35 | 43.0 | 67 | 32.0 |
| SPMS-270-35 | 270 | 35 | 39.4 | 59 | 30.0 |
| SPMS-300-30 | 300 | 30 | 41.7 | 55 | 28.0 |
| SPMS-325-30 | 325 | 30 | 38.0 | 48 | 24.0 |
| SPMS-325-28 | 325 | 28 | 41.2 | 50 | 26.4 |
| SPMS-325-23 | 325 | 23 | 49.8 | 55 | 25.4 |
| SPMS-350-25 | 350 | 25 | 43.0 | 48 | 18.7 |
| SPMS-400-23 | 400 | 23 | 40.7 | 41 | 19.0 |
| SPMS-400-18 | 400 | 18 | 51.3 | 46 | 20.0 |
| SPMS-500-18 | 500 | 18 | 41.7 | 33 | 15.3 |
Solar panel printing
PCB (Printed Circuit Boards) screen printing
Textile screen printing
Glass screen printing
Ceramic screen printing
Plastics & packaging
Membrane switches
Mesh Equality, Wear Well :stainless steel printing screen is made of high-quality stainless steel wire with uniform mesh number, high surface finish, no surface treatment, convenient and simple maintenance, and more durable.
Widespread Application: Acid-resisting, alkali-resisting and high temperature resisting.High-quality stainless steel materials, it is widespread Application in mining, chemical, pharmaceutical, petroleum, metallurgical, machinery, protection, construction crafts and other industries.
Easy to Cut: The screen sheet can be cut to needed shape and keep its stiff structure at the same time, such as round, rectangle, triangle, and other complicated shape you desired.
|
|
