Anping County Huihao Wire Mesh Manufacture Co., Ltd
1 Years
| Ask Lasest Price | |
| Model Number : | HH-ANODE |
| Certification : | ISO9001-2015 |
| Price : | contact with us |
| Payment Terms : | L/C,T/T,Western Union |
| Supply Ability : | 5000 sheet mesh per 20 days |
| Delivery Time : | within 7 work days |
1) Current density<2000A/M2
2) Temperature<85°C
3) Electrolyte:H2SO4 or HNO3, Neutral
4) PH 0.1~14
5) Max content of Fluoride ion is 200PPM
6) Homogenous degree: >=85%
7) Oxygen-liberated potential <=1.8V

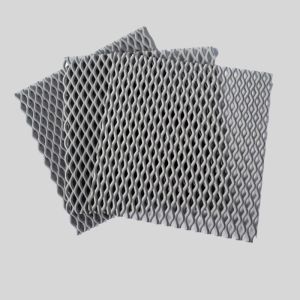

Platinum coated Titanium Electrode Mesh for PEMWE is crafted from high-quality Titanium Expanded Sheet, this electrode plate is meticulously coated with dual-sided platinum layers, ensuring optimal performance within the electrolysis chamber. Experience accelerated reaction rates and improved durability in your electrolysis processes, setting sail toward enhanced productivity and reliability.
Combines titanium’s strength with platinum’s electrocatalytic properties.
Resistant to corrosion even thoughTitanium Expanded Sheet is used in aggressive electrolyte bath
The Platinum coating thickness is uniform and the usage life span can be prolonged.
Titanium Expanded Sheet is customizable according to customers’ required dimensions and design.
Overall Thickness | Design Size (in.) | Opening Size (in.) | Strand Size (in.) | |||
| SWD | LWD | SWO | LWO | Width | Thickness | |
| .050 | .140 | .280 | .085 | .185 | .029 | .024 |
| .070 | .165 | .400 | .115 | .260 | .035 | .024 |
| .060 | .230 | .500 | .170 | .370 | .036 | .024 |
| .083 | .220 | .400 | .140 | .240 | .035 | .024 |
| .085 | .220 | .400 | .140 | .240 | .045 | .030 |
| .080 | .270 | .600 | .200 | .440 | .045 | .024 |
| .088 | .270 | .600 | .200 | .440 | .050 | .030 |
| .172 | .630 | 1.575 | .428 | 1.260 | .110 | .060 |
Commonly used in electroplating and electrolysis.
Platinised Titanium Expanded Sheet Anodes are used in electrochemical processes due to their durability, high current efficiency, and resistance to corrosion. Applications include cathodic protection (to prevent metal corrosion), electroplating (for depositing a metal coating on objects), and water treatment (to purify and desalinate water). Their robustness and longevity make them suitable for harsh environments and demanding industrial processes.
|
|
